General Specifications |
||||||
| Frequency Range |
|
VHF:136-174MHz UHF: 400-470MHz |
|
Number Of Channels |
|
512 |
| Channel Spacing |
|
Analog:25/12.5KHz Digital: 12.5KHz |
|
Operating Voltage |
|
7.4V |

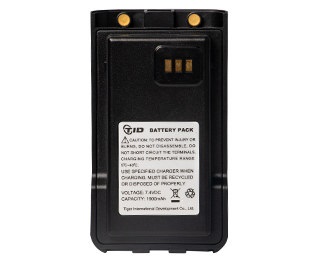

| Standard Battery |
|
2000mah (Lithium Ion) |
|
Battery Average Working Hours (5-5-90 Working Cycles) |
|
Analog / Digital: 13/17 Hours |
| Frequency Stability |
|
±1.5 PPM |
|
Operating Temperature Range |
|
-20℃~+55℃ |

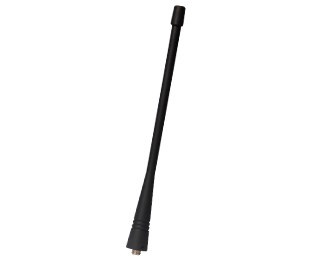

| Antenna Impedance |
|
50Ω |
|
Dimensions (H X W X D)(Without Antenna) |
|
119 X 55 X 34mm |
| Weight (Including Antenna And Battery) |
|
280g |
|
|||
|
Transmitter |
||||||
| Output Power |
|
VHF: 5.0W/1.0W UHF: 4.0W/1.0W |
|
Modulation (Analog) |
|
11KΦF3E@12.5KHz 16KΦF3E@25KHz |
| Modulation (Digital) |
|
12.5KHz Data And Voice 7K60FXW. Data Only 7K60FXD |
|
Clutter And Harmonics |
|
-36dBm<1ghz -30dbm="">1GHz |
| Signal To Noise Ratio |
|
40/45dB |
|
Audio Distortion |
|
≤3% |
| Modulation Limit |
|
±2.5@12.5KHz；±5.0@25KHz |
|
Audio Response(300 ~ 3000HZ) |
|
+1to-3dB |
| Digital Vocoder Type |
|
AMBE++ |
|
Digital Protocol |
|
ETSI-TS102361-1.-2.-3 |
|
Receiver |
||||||
| Sensitivity (Analog) |
|
≤0.30/0.20µV |
|
Sensitivity (Digital) |
|
≤0.22µV/BER5% |
| Adjacent Channel Selectivity |
|
60/70dB |
|
Intermodulation |
|
65dB |
| Spurious Response Suppression |
|
70dB |
|
Signal To Noise Ratio |
|
40/45dB |
| Audio Output Power |
|
1.0W |
|
Audio Distortion |
|
≤3% |
| Audio Response |
|
+1~-3dB |
|
Conduction Emission Miscellaneous |
|
<-57dBm |
