General |
||||||
| Frequency Range |
|
VHF: 136-174MHz UHF:400- 520MHz |
|
Channel Capacity |
|
16 |

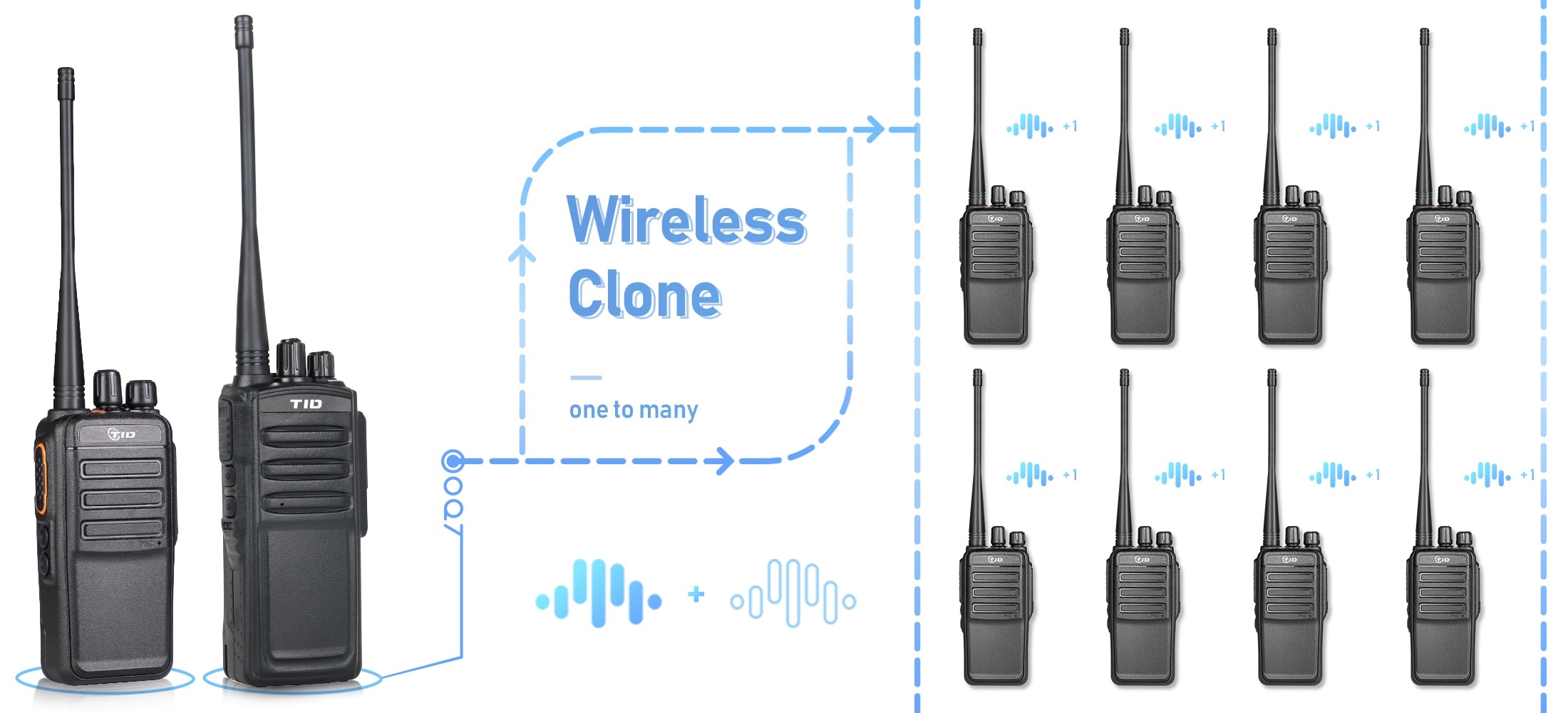

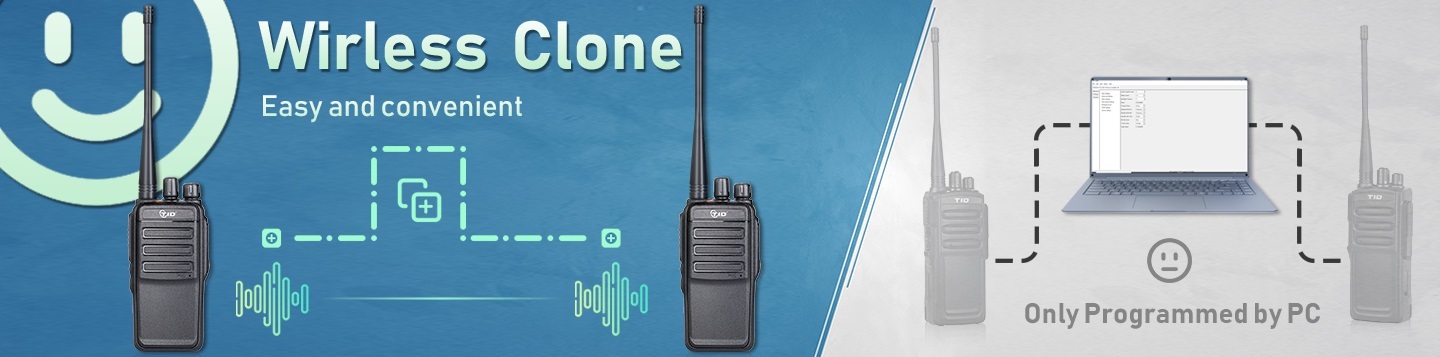

| Wireless Clone |
|
Yes |
|
Bluetooth Programming |
|
Optional |
| PTT ID |
|
Yes |
|
DTMF |
|
Yes |
| SOS |
|
Yes |
|

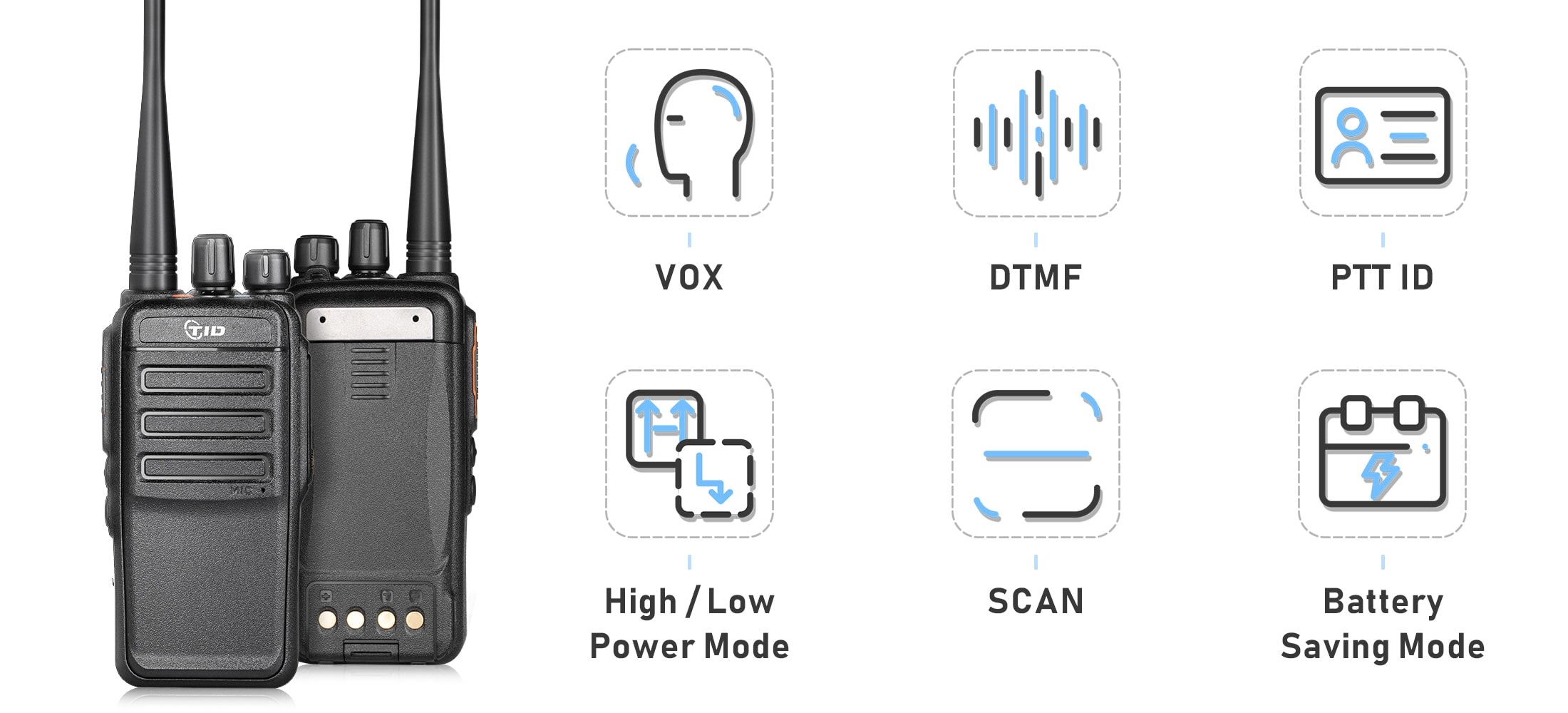

VOX |
|
Yes |
| Remote Stun/Kill/Activate |
|
Yes |
|
Channel Spacing |
|
12.5/25.0 KHz |
| Operation Voltage |
|
7.4V |
|
Battery Capacity |
|
2000mAh (Li-ion) |
| Battery Life(5-5-90 Duty Cycle) |
|
About 20 Hours |
|
Frequency Stability |
|
+2.5ppm |
| Operating Temperature |
|
-20~+ 60°C |
|
Antenna Impedance |
|
50Ω |
| Dimension( Hx Wx D) (Without Antenna) |
|
113 x 52x 32mm |
|
Weight (With Antenna& Battery) |
|
261g |
|
Transmitter |
||||||
| RF Power Output |
|
5W/4W |
|
Modulation Type |
|
-36dBm<1GHz; -30dBm> 1GHz |
| FM Noise |
|
45/40dB |
|
Audio Distortion |
|
≤5% |
| Modulation Limiting |
|
±2.5KHz@12.5KHz; ±5.0KHz@25KHz |
|
Audio Response |
|
+1to-3dB |
|
Receiver |
||||||
| Sensitivity |
|
≤0.30/0.20μV |
|
Adjacent Channel Selectivity |
|
60/70dB |
| Intermodulation |
|
70dB |
|
S/N |
|
45/40dB |
| Audio Power Output |
|
600mW |
|
Audio Distortion |
|
≤5% |
