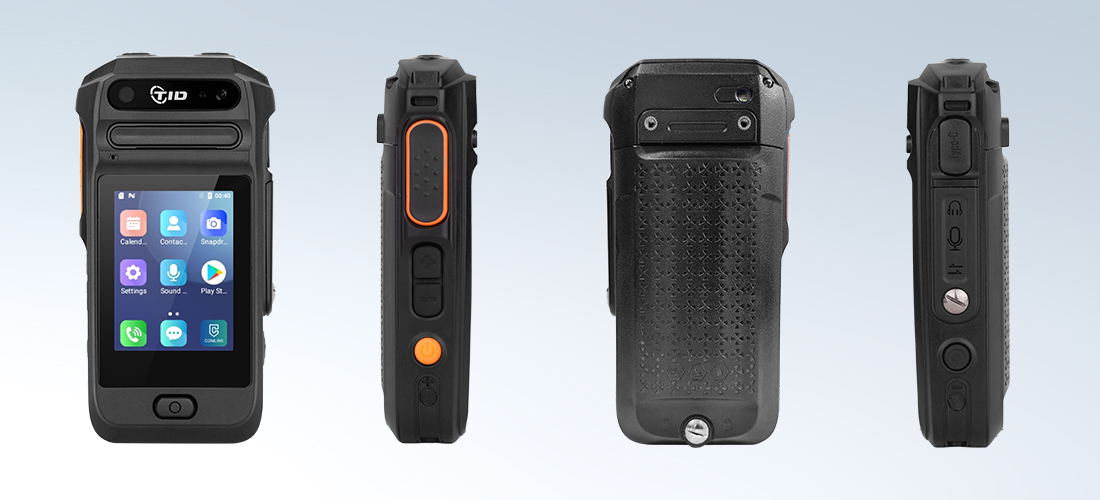

TID TD-G11 Android POC Radio Global LTE WiFi PTT Zello Two Way Radio_Guangzhou TID Electronic Technology Co.,Ltd

Current Location ：Home > Product > PoC

Technical specifications

Technical Sheet
System	Android 7.1	Platform	Comlins/ Zello/ Walkiefleet/ Real PTT/ Multi Platform APP
Network Version A	LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 EVDO/COMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz	Network Version B	LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz
Network Version C	LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz	Network Version D	LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz
Network Version E	LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz	WLAN	A Network Version: 2.4G/5G, 802.11 a/b/g/n B/C/D/E Network Version: 2.4G/5G, 802.11 a/b/g/n
Bluetooth	BT2.1+EDR/3.0/4.1/4.2LE	Positioning System	GPS/GLONASS/BeiDou
LTE	LTE FDD: Max 150Mbps(DL)/Max 50Mbps(UL) LTE TDD: Max 130Mbps(DL)/Max 35Mbps(UL)	UMTS	DC-HSDPA: Max 42Mbps(DL) HSUPA: Max 5.76Mbps(UL) WCDMA: Max 384Kbps(DL/UL)

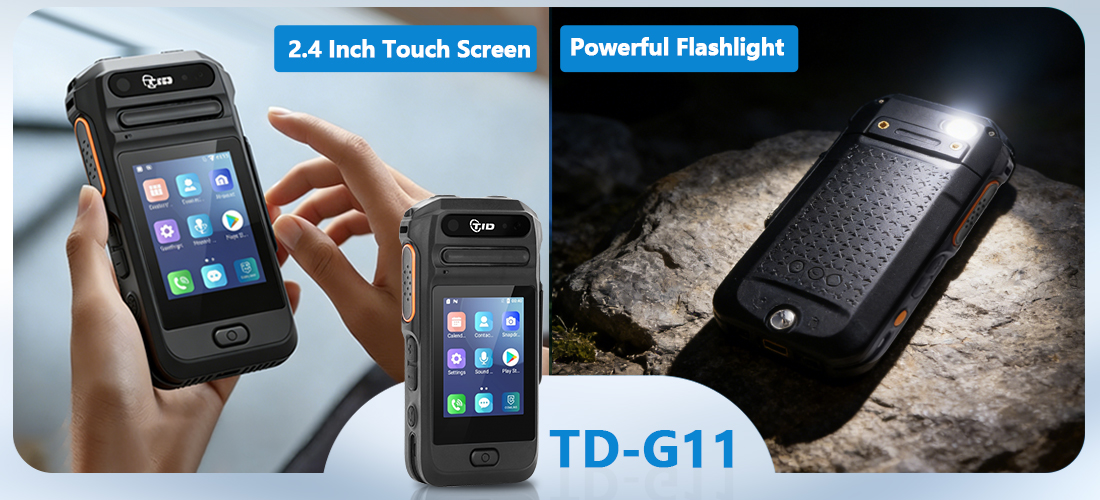

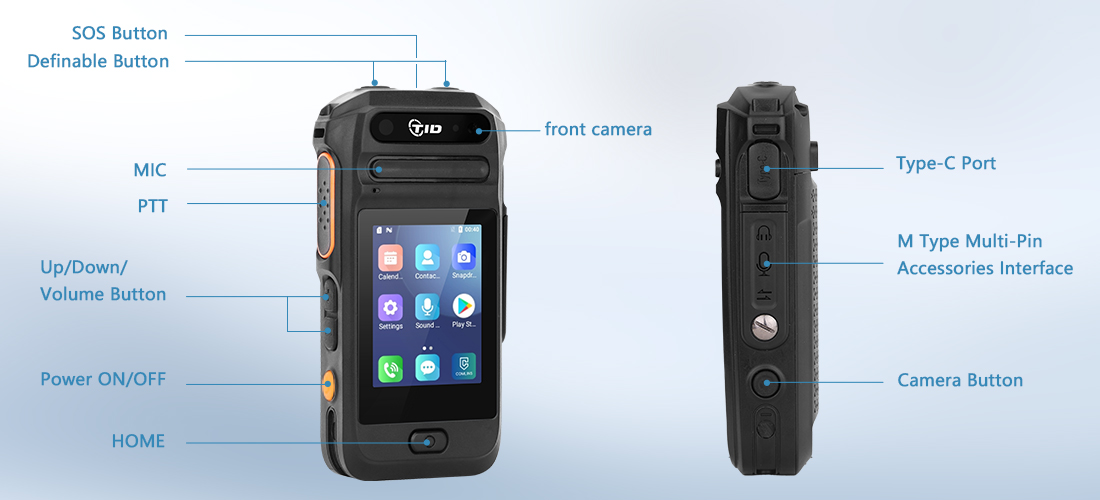

Display	2.4” 240*320 PX Capacitive Touch Pannel	Ports	M Type Multi-Pin Interface

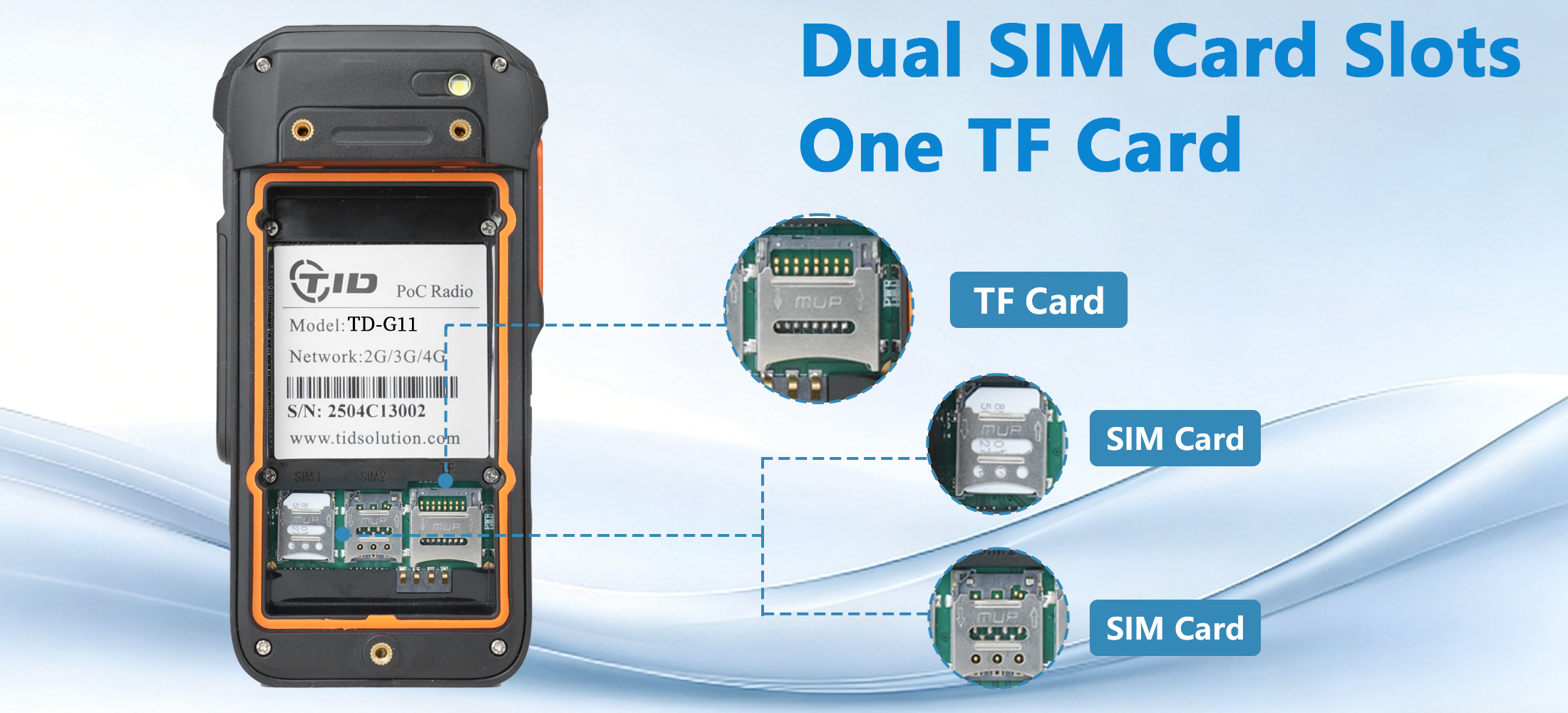

Memory	RAM: 1GB / ROM: 8GB	SIM Interface	Dual Nano SIM Slots

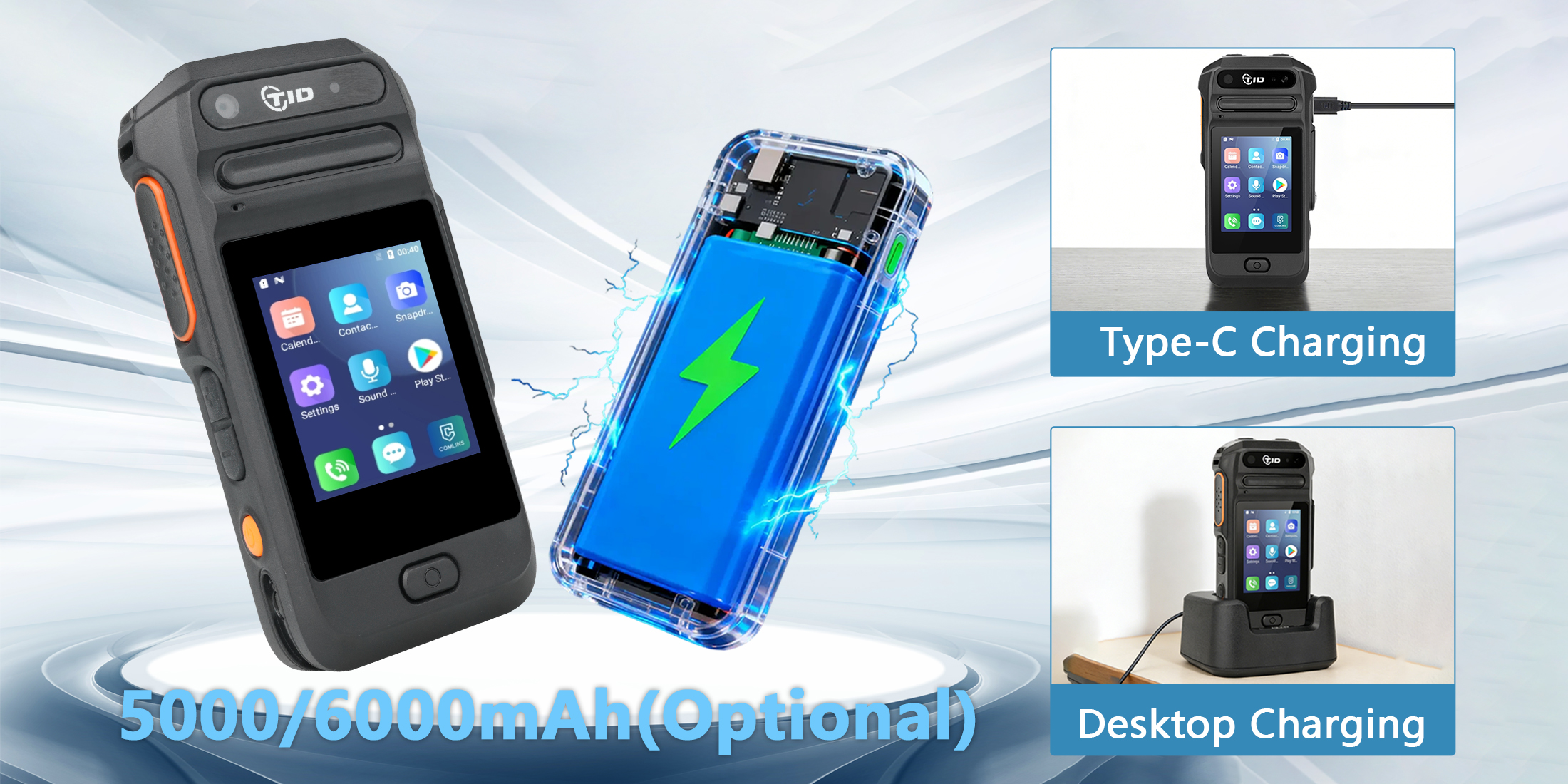

SD Card	*1 SD Card（3.0, 4-bit SDIO)	Battery	5000/6000mAh (Optional）
Dust and Waterproof	IP68	Audio Power Output	2W
Dimensions	1183260mm（Without Antenna）	Weight	219g（With Battery）
Operating Voltage	3.5V~4.2V, 3.8V Typical Value

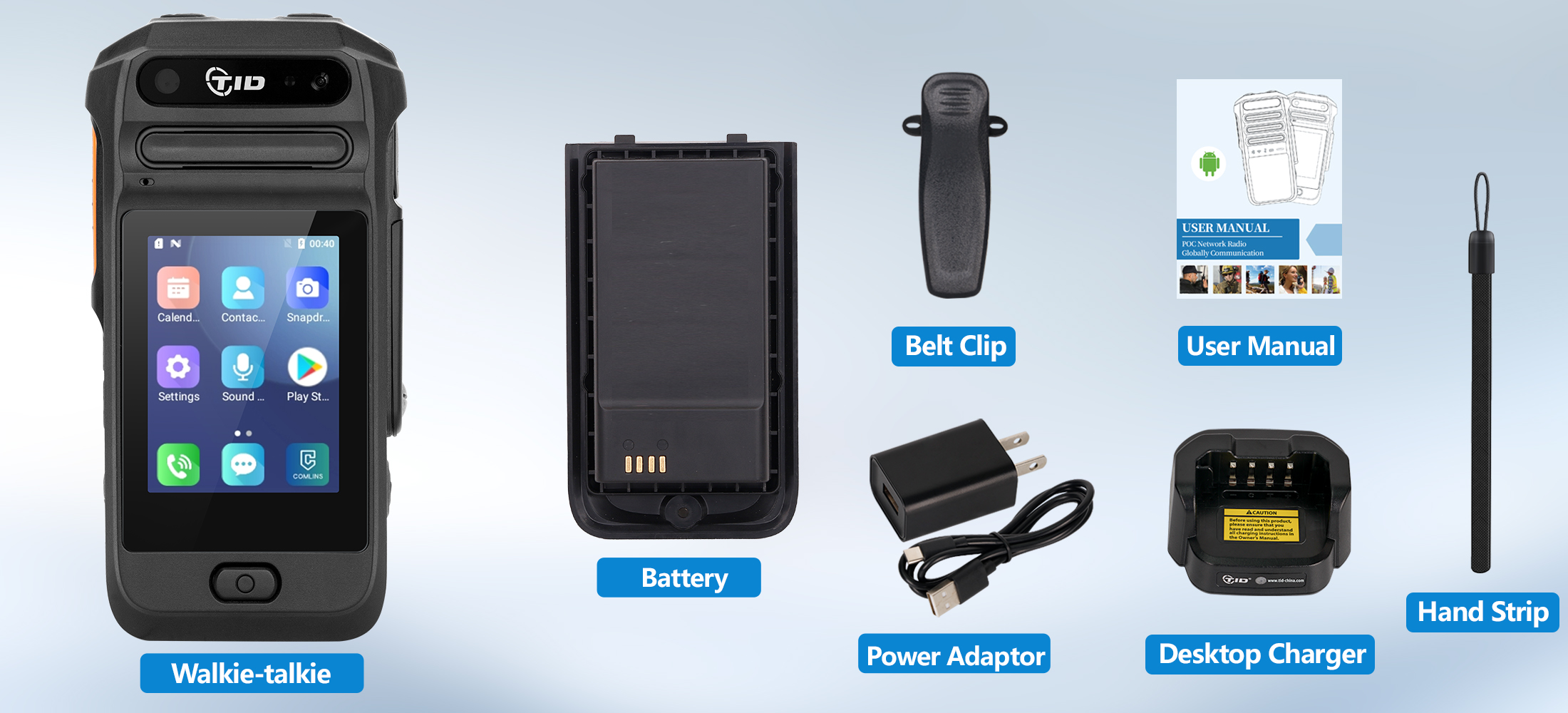

Standard Accessories
